setup-buildx-action

This action will create and boot a builder that can be used in the following steps of your workflow if you're using Buildx or the build-push action. By default, the docker-container driver will be used to be able to build multi-platform images and export cache using a BuildKit container.

Usage
Advanced usage
Customizing
Notes
- nodes output
- BuildKit container logs
Keep up-to-date with GitHub Dependabot

Usage

name: ci

on:
  push:

jobs:
  buildx:
    runs-on: ubuntu-latest
    steps:
      -
        name: Checkout
        uses: actions/checkout@v3
      -
        # Add support for more platforms with QEMU (optional)
        # https://github.com/docker/setup-qemu-action
        name: Set up QEMU
        uses: docker/setup-qemu-action@v2
      -
        name: Set up Docker Buildx
        uses: docker/setup-buildx-action@v2

Advanced usage

Customizing

inputs

Following inputs can be used as step.with keys

Name	Type	Description
`version`	String	Buildx version. (eg. `v0.3.0`, `latest`, `https://github.com/docker/buildx.git#master`)
`driver`	String	Sets the builder driver to be used (default `docker-container`)
`driver-opts`	CSV	List of additional driver-specific options (eg. `image=moby/buildkit:master`)
`buildkitd-flags`	String	Flags for buildkitd daemon (since buildx v0.3.0)
`install`	Bool	Sets up `docker build` command as an alias to `docker buildx` (default `false`)
`use`	Bool	Switch to this builder instance (default `true`)
`endpoint`	String	Optional address for docker socket or context from `docker context ls`
`config`¹	String	BuildKit config file
`config-inline`¹	String	Same as `config` but inline

¹ config and config-inline are mutually exclusive

CSV type must be a newline-delimited string

driver-opts: image=moby/buildkit:master

driver-opts: |
  image=moby/buildkit:master
  network=host

outputs

Following outputs are available

Name	Type	Description
`name`	String	Builder name
`driver`	String	Builder driver
`platforms`	String	Builder node platforms (preferred or available)
`nodes`	JSON	Builder nodes metadata

environment variables

The following official docker environment variables are supported:

Name	Type	Default	Description
`DOCKER_CONFIG`	String	`~/.docker`	The location of your client configuration files

Notes

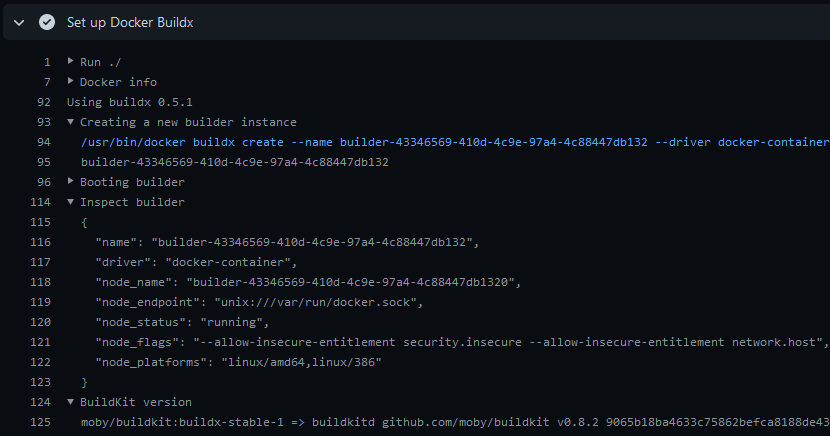

`nodes` output

[
  {
     "name": "builder-3820d274-502c-4498-ae24-d4c32b3023d90",
     "endpoint": "unix:///var/run/docker.sock",
     "driver-opts": [
       "network=host",
       "image=moby/buildkit:master"
     ],
    "status": "running",
    "buildkitd-flags": "--allow-insecure-entitlement security.insecure --allow-insecure-entitlement network.host",
    "buildkit": "3fab389",
    "platforms": "linux/amd64,linux/amd64/v2,linux/amd64/v3,linux/amd64/v4,linux/386"
  }
]

Name	Type	Description
`name`	String	Node name
`endpoint`	String	Node endpoint
`driver-opts`	List	Options for the driver
`status`	String	Node status
`buildkitd-flags`	String	Flags for buildkitd daemon
`buildkit`	String	BuildKit version
`platforms`	String	Platforms available

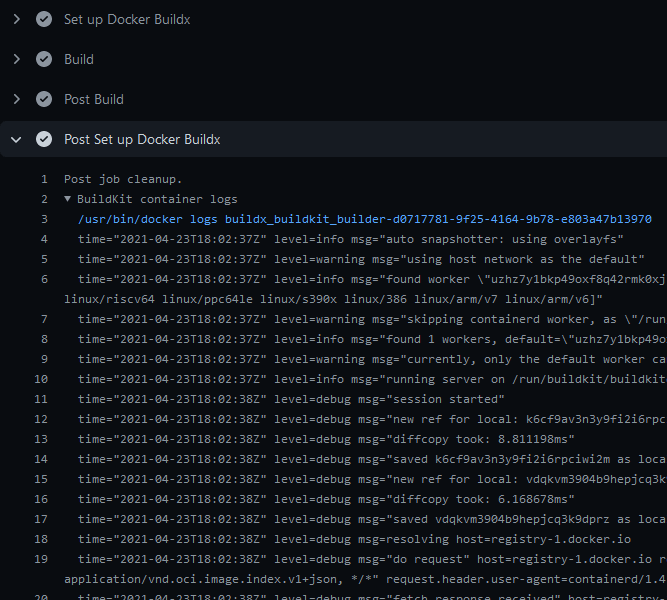

BuildKit container logs

To display BuildKit container logs (when docker-container driver is used) you have to enable step debug logging, or you can also enable debugging in the setup-buildx action step:

  -
    name: Set up Docker Buildx
    uses: docker/setup-buildx-action@v2
    with:
      buildkitd-flags: --debug

Logs will be available at the end of a job:

Keep up-to-date with GitHub Dependabot

Since Dependabot has native GitHub Actions support, to enable it on your GitHub repo all you need to do is add the .github/dependabot.yml file:

version: 2
updates:
  # Maintain dependencies for GitHub Actions
  - package-ecosystem: "github-actions"
    directory: "/"
    schedule:
      interval: "daily"
